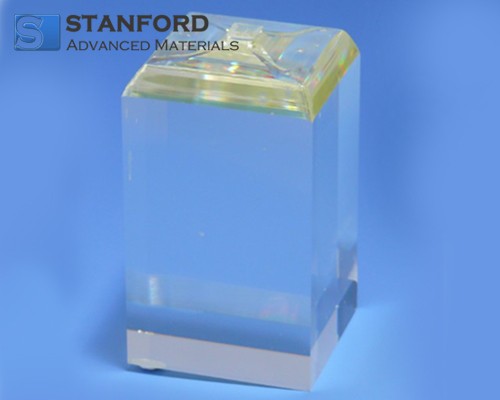

CY2425 Potassium Tantalate Niobate Crystal, KTN Crystal

Potassium Tantalate Niobate Crystal Description

Potassium tantalate niobate crystals are always produced by NTT-AT even though the fabrication process has been considered difficult. KTN crystals are the optical crystal with the maximum electrooptic effects among existing materials.

It has been known since the 1950s that potassium tantalate niobate crystal has a very large electro-optic effect; that is, its refractive index is changed greatly by a comparatively low applied voltage. To be used as an optical device, the KTN must be a single crystal so that the incident light does not scatter.

The giant electro-optic effect of potassium tantalate niobate (KTN) crystal has been exploited.

Potassium Tantalate Niobate Crystal Specifications

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.

Potassium Tantalate Niobate Crystal Application

Potassium tantalate niobate crystal is used in the following applications:

- KTN Deflector

- 200kHz OCT wavelength swept light

- Veri-focal lens

- Optical modulator

- Various experiments application (chip, device)

Potassium Tantalate Niobate Crystal FAQs

Q1. What are the main properties of KTN Crystals?

Electro-optic Effect: KTN crystals have a high electro-optic coefficient, which makes them suitable for applications requiring fast response times and high sensitivity.

Nonlinear Optical Properties: They exhibit nonlinear optical behavior, making them useful in frequency doubling and other non-linear optical devices.

High Transmission Range: KTN crystals can operate over a wide optical wavelength range, from the ultraviolet to the infrared.

Ferroelectric Properties: KTN crystals show ferroelectric behavior, making them suitable for various applications in fields like telecommunications and signal processing.

Q2. Can Potassium Tantalate Niobate Crystals be coated?

Yes, KTN Crystals can be coated for specific applications. Common coatings include:

Anti-reflective Coatings (AR): To reduce reflections and improve light transmission, especially in optical devices.

Protective Coatings: To prevent surface damage, contamination, and enhance durability.

Electrodes: Coatings for electrical connections in devices that require electric fields.

These coatings can be applied based on the requirements of your application, whether it's for optical performance or electrical connectivity.

Q3. What is the polishing service available for KTN Crystals?

We provide custom polishing services for KTN Crystals to suit your application needs:

One-Side Polishing: Ideal for single-surface optical components or devices.

Double-Side Polishing: Provides high-quality finishes on both sides, ensuring optimal performance in applications requiring symmetry.

Multi-Surface Polishing: Customized polishing of multiple surfaces for complex designs or specialized applications, ensuring uniform quality across the crystal.
