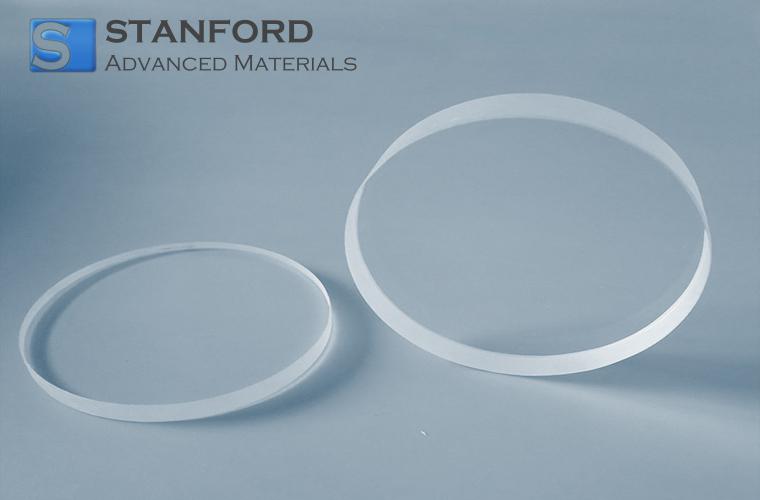

Discontinued (Discontinued) CY2491 Yttrium Aluminium Garnet (YAG) Crystal Substrates

Catalog No.	CY2491
Dimensions	Dia. 1-2", 10×10 mm, or customized
Material	Y3Al5O12 (YAG)
Orientation	(100), (110), (111), +/- 0.5 degree
Thickness	0.5 mm or 1.0 mm or customized

Yttrium Aluminium Garnet Crystal Substrate is a substrate material that can be used for UV and IR optics. SAM can offer a variety size of YAG Single-crystal Substrate. We have a professional sales team to offer a fast response within 24 hours and warm service.

INQUIRY

CY2491 Yttrium Aluminium Garnet (YAG) Crystal Substrates

Description

Specification

Reviews

LATEST RECOMMENDED

NR2172 Gallium Nitride Wafer

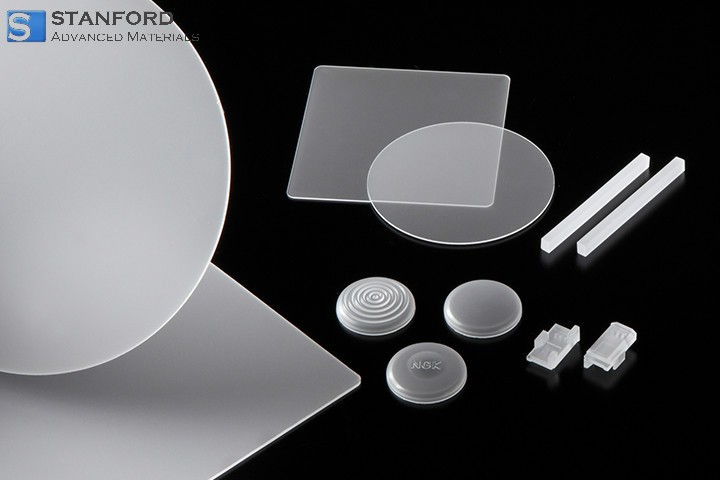

CY2173 Sapphire Wafer

CY2174 Silicon Wafer

CY2175 Silicon Carbide Wafer

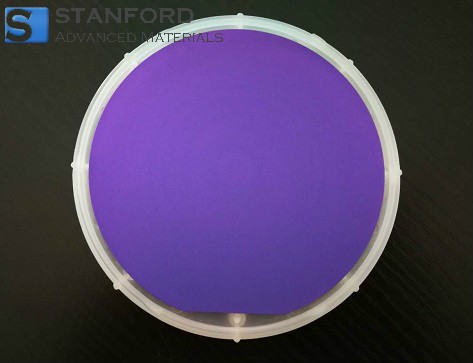

SC2275 Silicon Thermal Oxide Wafer

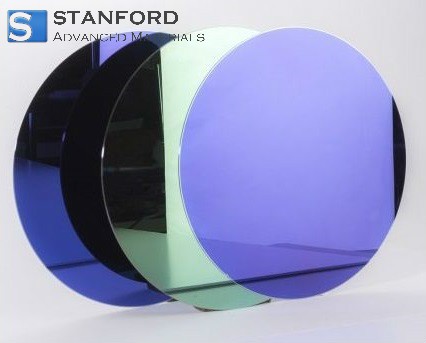

SC2276 SOI Wafer

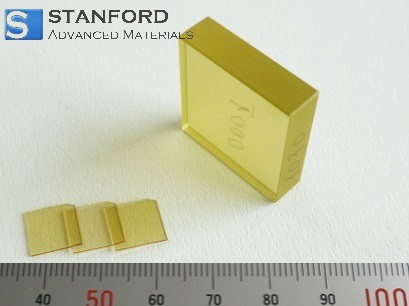

ZN2277 Zinc Oxide Wafers Substrates

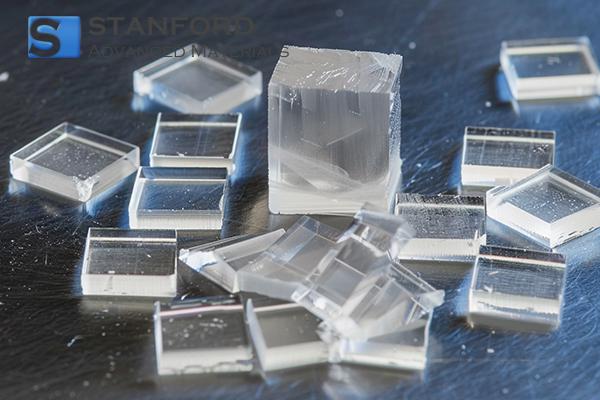

CY2298 Potassium Tantalate (KTaO3) Crystal Substrates

GET A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United States

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Attach Drawing:

Drop files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

Dimensions	Dia. 1-6", 10×10 mm, or customized, Thickness: 0.5 mm, 1 mm, etc.
Refractive Index, at 1.064 µm	1.82
Reflection Loss, % for two surfaces at 1.064 µm	16.7%
Thermal Expansion	8.2 (100), 7.7 (110), 7.8 (111)
Density, g/cm³ (20°C)	4.56
Solubility	Insoluble in water
Type of Material	single crystal
Crystal Structure	cubic
Melting Point, at °C	1940
Thermal Conductivity, W x cm^-1 x °K^-1	0.14
Specific Heat Capacity, J/(kg · K) at 0 °C	590
Dielectric Constant	11.7
Young´s Modulus (E), GPa	300
Hardness (Mohs)	~8,5

Dimensions	Dia. 1-6", 10×10 mm, or customized, Thickness: 0.5 mm, 1 mm, etc.
Refractive Index, at 1.064 µm	1.82
Reflection Loss, % for two surfaces at 1.064 µm	16.7%
Thermal Expansion	8.2 (100), 7.7 (110), 7.8 (111)
Density, g/cm³ (20°C)	4.56
Solubility	Insoluble in water
Type of Material	single crystal
Crystal Structure	cubic
Melting Point, at °C	1940
Thermal Conductivity, W x cm^-1 x °K^-1	0.14
Specific Heat Capacity, J/(kg · K) at 0 °C	590
Dielectric Constant	11.7
Young´s Modulus (E), GPa	300
Hardness (Mohs)	~8,5

Discontinued (Discontinued) CY2491 Yttrium Aluminium Garnet (YAG) Crystal Substrates

Yttrium Aluminium Garnet Crystal Substrate Description

Yttrium Aluminium Garnet Crystal Substrate Specifications

Yttrium Aluminium Garnet Crystal Substrate Applications

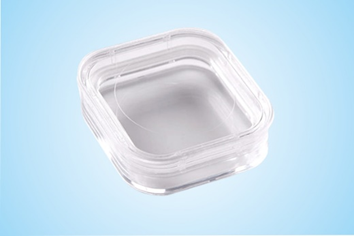

Yttrium Aluminium Garnet Crystal Substrate Packing
