IR0889 Iridium (Ir) Wire

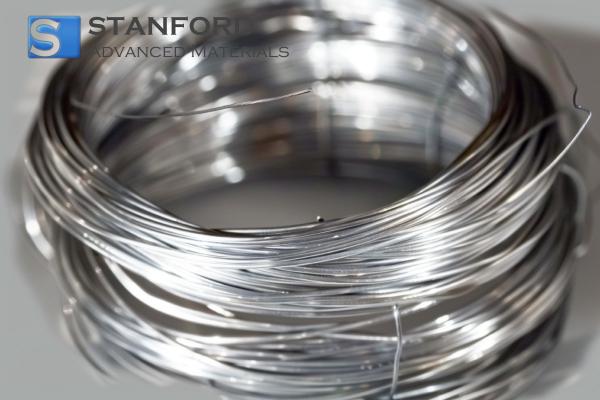

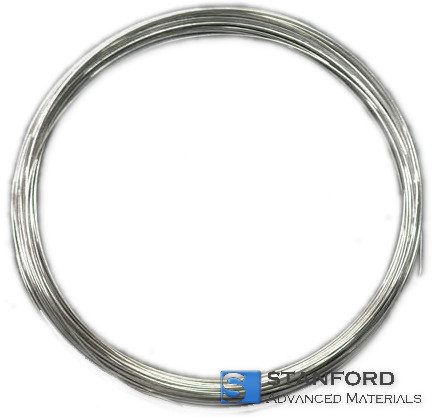

Description of Iridium Wire

Iridium is a rare, precious metal that is hard, and brittle, and has a low ductility, which makes it a difficult material to work. In appearance, it is a lustrous, silvery metal. As might be expected from its position in the periodic table, iridium is stable to air and water and is not attacked by any acids, including "aqua regia." Iridium wire is a thin wire-like iridium metal. The resistivity of the iridium wire is 6.03×10^-2Ωmm²/m, the tensile strength is 1493MPa, and the elongation is 10%-20%. The iridium wire can be used as high-temperature oxidation-resistant thermocouple material and filament material.

Specification of Iridium and Iridium Alloy Wires

Typical Chemical Analysis

Properties

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.

Iridium Wire Applications

1. Electrical Spark Discharge: Iridium Wire is commonly used in the manufacture of electrodes for electrical spark discharge processes, such as electrodes for cutting and machining materials in electrical discharge machining, and as ignition electrodes in spark plugs.

2. Chemical reaction catalysts: Iridium metal has good catalytic properties in certain chemical reactions, so Iridium Wire is often used to make catalysts for chemical reactions such as redox reactions and organic synthesis.

3. Medical Devices: Due to its biocompatibility and corrosion resistance, Iridium Wire has certain applications in the manufacture of medical devices, such as implantable medical devices and medical electrodes.

4. Thermocouples: Iridium Wire is often used to make high-temperature thermocouples to measure temperatures in high-temperature environments due to its high-temperature properties and stability.

5. Aerospace industry: In the aerospace industry, Iridium Wire is used to manufacture components that require high temperatures and corrosion resistance, such as rocket nozzles and gas turbine components.

Iridium Wire Packaging

Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

Packaging: Carton, Wooden Box, or Customized.

Related Information

American Wire Gauge Conversion Chart

Iridium Wire FAQs

Q1: What diameters are available for iridium wire?

A1: Iridium wire is available in a range of diameters, typically from 0.06 to 6.0 mm. Custom diameters can be manufactured based on your specific needs. Please contact us for more details on custom orders.

Q2: How should iridium wire be stored?

A2: To maintain its quality and performance, iridium wire should be:

Stored in a dry, clean, and cool environment

Kept away from corrosive substances and extreme temperatures

Sealed or vacuum-packed when not in use to prevent contamination

Q3: Do you provide Material Safety Data Sheets (MSDS) or technical support?

A3: Yes, we provide comprehensive MSDS documentation and technical support for iridium wire. If you need more information on handling, safety, or application guidelines, please feel free to reach out to our team.
