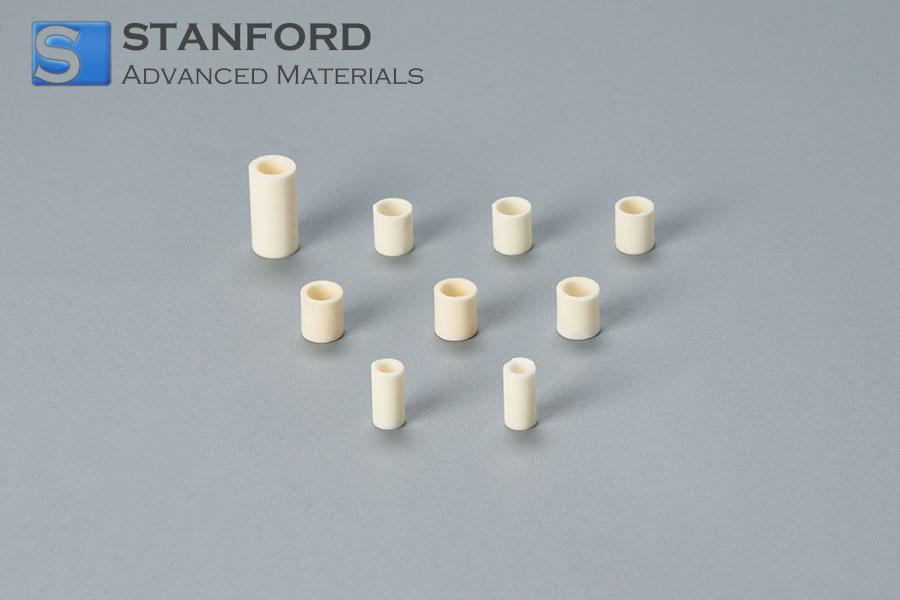

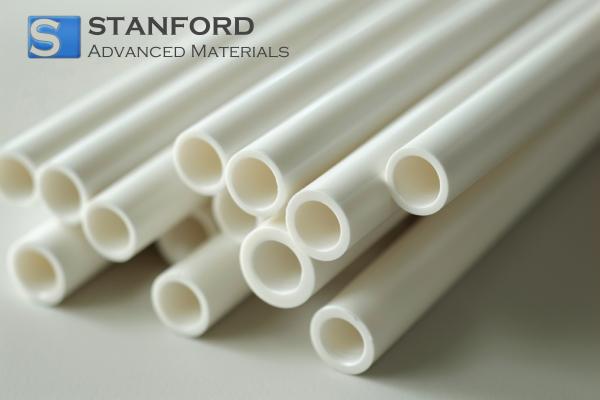

Name: AC0915 Alumina Tube, Aluminum Oxide Tube (Al2O3 Tube)
Brand: Stanford Advanced Materials (SAM)
SKU: AC0915
Availability: InStock

Home

Products

Ceramic Material

Alumina

AC0915 Alumina Tube, Aluminum Oxide Tube (Al2O3 Tube)

Catalog No.	AC0915
Dimensions	Customized
Material	Al2O3
Purity	≥95%, or customized
Density	3.7-3.9 g/cm3

Stanford Advanced Materials provides technical ceramic tubes such as Alumina Tubes with high purity, tight dimensional tolerance, and competitive prices. Our Alumina Tube Products, with diameters from 1mm to 100mm and purity of up to 99.7%, will fulfill most of the requirements. Custom manufacturing for special shapes is always available.

Related products: Alumina Plate, Alumina Custom Parts

INQUIRY

Add to Compare

Description

Specification

SDS

Case

Video

Reviews

Alumina Tube Description

Alumina tubes have a specific set of properties that make them suitable for widespread scientific and industrial uses. These properties include high hardness, good abrasion resistance, and high thermal stability. They allow alumina tubes to be able to withstand harsh temperatures without deforming or deteriorating.

In addition, alumina tubes' electrical insulation properties are excellent, so they are well-suited for use under high-voltage applications and electronic systems. They are chemically inert as well and withstand corrosion from the majority of acids and alkalis, which ensures dimensional stability with variable thermal conditions. These characteristics make Alumina Tubes very important for applications like furnace components, thermocouple protection, electrical insulation, and structural components in hostile chemical and thermal environments.

Alumina Tube Specification

Item	Unit	Al95	Al97	Al99	Al997
AL2O3 Content	Wt%	95	97	99	99.7
Color	-	White	Ivory	Ivory	Ivory
Tensile Strength	Kpsi	32	30-40	38	36
Flexural Strength	Kpsi	52	45-50	55	54
Compressive Strength	Kpsi	300	~300	377	350
Density	g/cm³	3.7	3.8	3.9	3.92
Hardness	HV, GPa	13.8	~14	17.2	18
Thermal Conductivity	W/(m·K)	25	~25	30	30
Coefficient of Thermal Expansion (CTE)	×10⁻⁶/°C	7.7	7.8	7.8	7.8
Working Temperature	°C	1500	1600	1650	1650
Dielectric Constant	-	9.5	9.6	9.7	9.8
Volume Resistivity (25°C)	Ohm-cm	>10^14	>10^14	>10^14	>10^14
Volume Resistivity (25°C)	Ohm-cm	>10^14	>10^14	>10^14	>10^14

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us. Customized Sizes and shapes are also available. Please contact us.

Alumina Tube Applications

Our alumina tubes are essential components in demanding environments across industries:

High-Temperature: Furnace tubes, thermal processing, thermocouple sheaths.
Semiconductor: CVD, diffusion processes, and wafer manufacturing.
Industrial: Insulators, injector tubes, and components for harsh chemical environments.
Laboratory & R&D: Sample holders, tube furnaces, and custom prototypes.

Alumina Tube Packaging

Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

Packaging: Bottle, Carton, Wooden Box, or Customized.

Alumina Tube FAQs

1. What are alumina tubes' limits in resisting temperatures?

Aluminum oxide tubes typically possess a temperature resistance between 1400°C and 1750°C, depending on purity and manufacturing quality. High-purity tubes (99.7% and above) possess high thermal stability and are best applied to high-temperature applications like industrial furnaces and safeguarding thermocouples.

2. How chemically resistant and robust are Al2O3 tubes?

These tubes have very high mechanical strength, very good compressive and bending strength. They also have very good chemical resistance, being resistant to most alkalis and acids, and are more than adequate in providing endurance in harsh industrial environments.

3. Are your alumina tubes porous?

Yes, all of our alumina tubes are non-porous and dense. They are made by high-temperature sintering in order to offer maximum mechanical strength, chemical resistance, and gas-tight operation.

Specification

Item	Unit	Al95	Al97	Al99	Al997
AL2O3 Content	Wt%	95	97	99	99.7
Color	-	White	Ivory	Ivory	Ivory
Tensile Strength	Kpsi	32	30-40	38	36
Flexural Strength	Kpsi	52	45-50	55	54
Compressive Strength	Kpsi	300	~300	377	350
Density	g/cm³	3.7	3.8	3.9	3.92
Hardness	HV, GPa	13.8	~14	17.2	18
Thermal Conductivity	W/(m·K)	25	~25	30	30
Coefficient of Thermal Expansion (CTE)	×10⁻⁶/°C	7.7	7.8	7.8	7.8
Working Temperature	°C	1500	1600	1650	1650
Dielectric Constant	-	9.5	9.6	9.7	9.8
Volume Resistivity (25°C)	Ohm-cm	>10^14	>10^14	>10^14	>10^14
Volume Resistivity (25°C)	Ohm-cm	>10^14	>10^14	>10^14	>10^14

SDS

Print to PDF

SAFETY DATA SHEET

BROCHURE

Print to PDF

BROCHURE

Case

Alumina Tube in Thermal CVD Tube Furnace

Application: A controlled atmosphere tube furnace designed for thermal Chemical Vapor Deposition (CVD)

Challenge: The furnace required a material for the core tube that would withstand high temperature and provide a stable, controlled atmosphere for processes such as depositing thin carbon films from methanol.

Solution: High-density alumina tube was selected for application in the production of the furnace tube.

Implementation: The built furnace contained three distinct temperature zones, with the central zone featuring a maximum temperature of 650°C. For efficiency and minimized heat loss, the assembly was insulated with materials like asbestos and glass wool.

Outcome: The use of the alumina tube facilitated a robust furnace structure with good temperature management (an accuracy of ±1°C). The setup successfully facilitated the said CVD processes, allowing deposited film structures to be investigated using techniques like optical microscopy, FT-IR, and SEM
