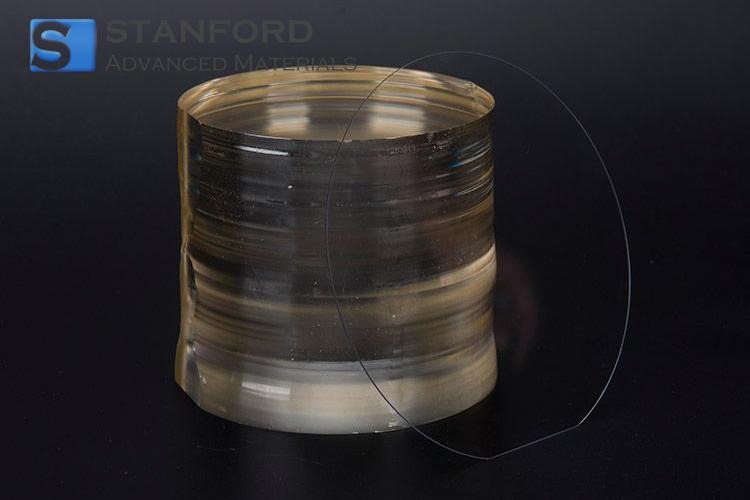

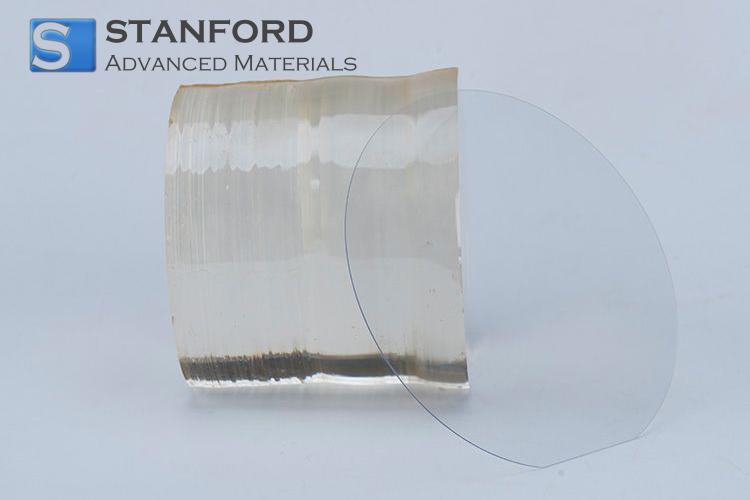

CY0500 Lithium Niobate Crystal (LiNbO3 Crystal)

Catalog No.	CY0500
Material	LiNbO3
Density	4.64 g/cm3
Transmission range	370-5000nm
Crystal Structure	Trigonal
Form	Crystal

Lead time: 4-5 weeks for customized size

Lithium Niobate Crystal (LiNbO3 Crystal) is an inorganic material, and a negative crystal with piezoelectric, ferroelectric, photoelectric, nonlinear optical, and thermoelectric properties. Stanford Advanced Materials (SAM) has rich experience in manufacturing and supplying high-quality optical products.

INQUIRY

Description

Specification

Reviews

LATEST RECOMMENDED

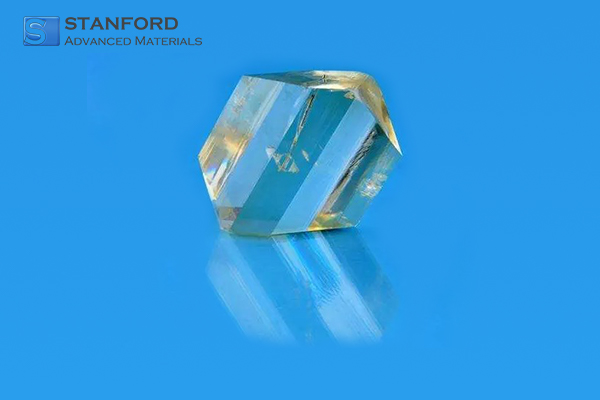

CY0492 Potassium Titanyl Phosphate (KTP)

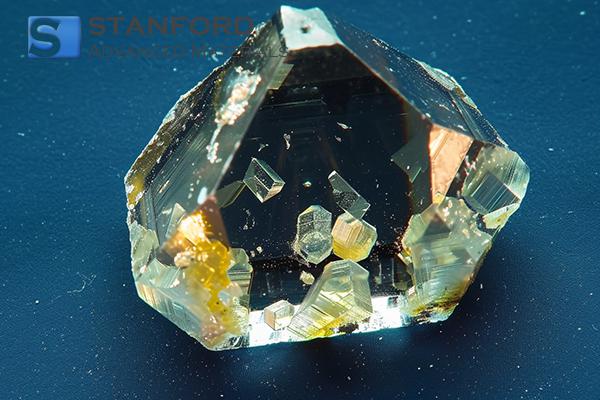

CY0493 Potassium Titanyle Arsenate (KTA)

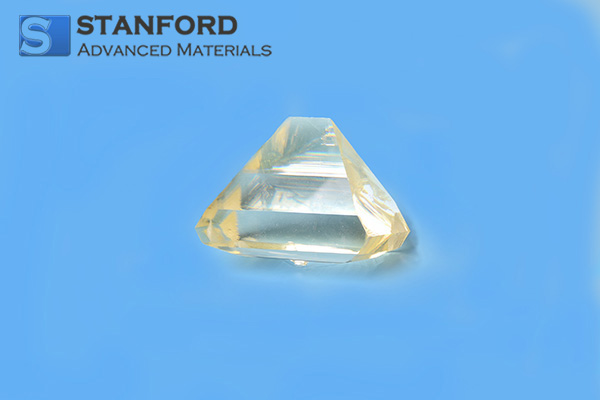

OP0494 Gray Track Resistance Potassium Titanyl Phosphate (GTR-KTP)

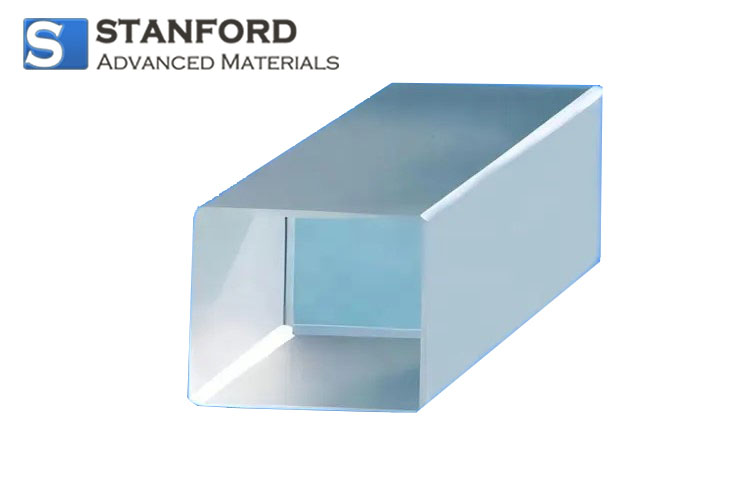

CY0495 Beta-barium Borate Crystal (BBO Crystal)

CY0496 BiB3O6 (BIBO) Crystal

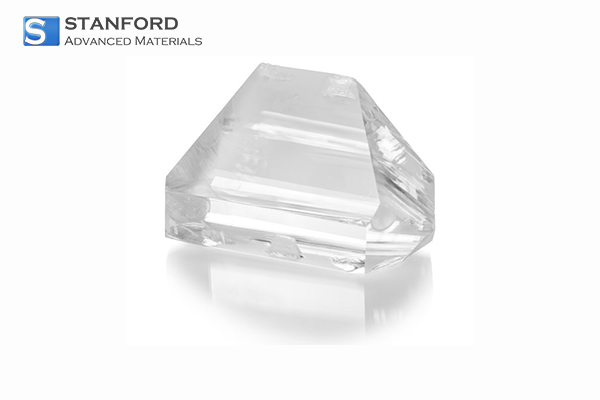

CY0497 Rubidium Titanyl Phosphate (RTP)

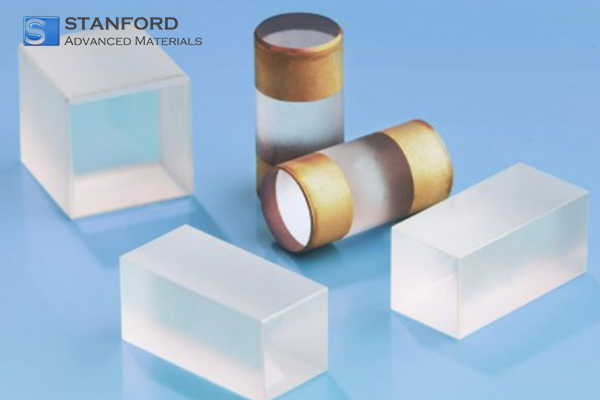

CY0498 DKDP & KDP Crystal

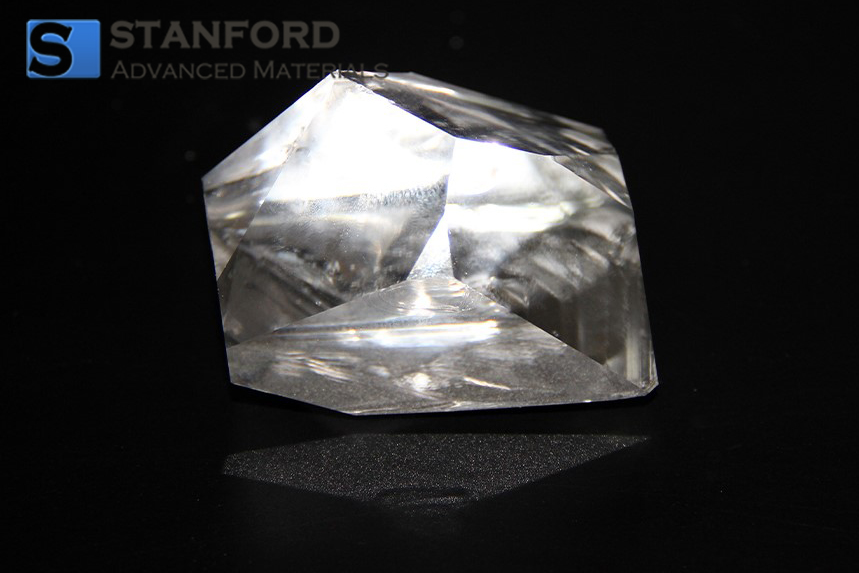

CY0501 Lithium Triborate Crystal (LBO Crystal, LiB3O5 Crystal)

GET A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United States

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Attach Drawing:

Drop files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

Grade	Optical grade LiNbO3	SAW grade LiNbO3
Orientation	X-cut, Z-cut (+/-0.2°)	Z-cut, Y-cut, Y-cut 36° off, Y-cut 64° off, Y-cut 128° off
Dimensions	10 cm * 10 cm, Or customized	10 cm * 10 cm, Or customized
Polishing	Single or Both side polished Surface Finish: 20/10 or 10/5	Single or Both side polished Surface Finish: 20/10 or 10/5
TTV	≤10um	≤10um
Curie temperature	1142℃ +/-0.7℃	1142℃ +/-3℃
Edge chamfer	Edge rounding	Edge rounding

Crystal Structure	Trigonal
Lattice constant	a=0.515Å, c=13.863Å, Z=6Å
Melting Point	1250±5℃
Curie Point	1140±5℃
Mohs Hardness	5
Density	4.64 g/cm³
Dielectric Constant	ε11/ε0=85; ε33/ε0=29.5
Thermal Expansion Coefficient	a1=a2=2×10^-6/℃, a3=2.2×10^-6/℃ at 25℃
Thermal Conductivity	38 W /m /K @ 25℃
Transmission range	370-5000nm
Piezoelectric constant	d22=2.04×10^-11C/N, d33=0.6×10^-11C/N, d15=7×10^-11C/N, d31=-0.1×10^-11C/N
E-O Coefficient	gT33=32pm/V, gS33=31pm/V； gT31=10pm/V, gS31=8.6pm/V gT22=6.8pm/V, gS22=3.4pm/V
Refractive Indices	no=2.2827±0.0003 ne=2.1928± 0.0003

Grade	Optical grade LiNbO3	SAW grade LiNbO3
Orientation	X-cut, Z-cut (+/-0.2°)	Z-cut, Y-cut, Y-cut 36° off, Y-cut 64° off, Y-cut 128° off
Dimensions	10 cm * 10 cm, Or customized	10 cm * 10 cm, Or customized
Polishing	Single or Both side polished Surface Finish: 20/10 or 10/5	Single or Both side polished Surface Finish: 20/10 or 10/5
TTV	≤10um	≤10um
Curie temperature	1142℃ +/-0.7℃	1142℃ +/-3℃
Edge chamfer	Edge rounding	Edge rounding

Crystal Structure	Trigonal
Lattice constant	a=0.515Å, c=13.863Å, Z=6Å
Melting Point	1250±5℃
Curie Point	1140±5℃
Mohs Hardness	5
Density	4.64 g/cm³
Dielectric Constant	ε11/ε0=85; ε33/ε0=29.5
Thermal Expansion Coefficient	a1=a2=2×10^-6/℃, a3=2.2×10^-6/℃ at 25℃
Thermal Conductivity	38 W /m /K @ 25℃
Transmission range	370-5000nm
Piezoelectric constant	d22=2.04×10^-11C/N, d33=0.6×10^-11C/N, d15=7×10^-11C/N, d31=-0.1×10^-11C/N
E-O Coefficient	gT33=32pm/V, gS33=31pm/V； gT31=10pm/V, gS31=8.6pm/V gT22=6.8pm/V, gS22=3.4pm/V
Refractive Indices	no=2.2827±0.0003 ne=2.1928± 0.0003
